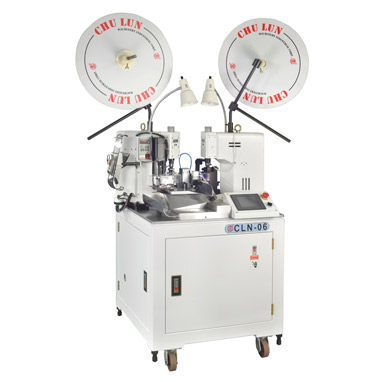

CLN-06 Full Automatic Terminal Crimping Machine (Thick Wire)

  • Product Name

    Full Automatic Terminal Crimping Machine (Thick Wire)

  • Product Feature
    ● Touch screen operations display. The wire strip length can be adjusted on the main control panel.
    ● Servo motor control system to complete fixed-inch, wire cutting, stripping and other actions that accuracy is more accurate, easier, more stable performance.
    ● The crimping seat can be adjusted on the touch screen.
    ● Fast manual tension adjustment with micro knob (in cells of 0.02mm) without any tool.
    ● The 100 sets of memory files can be saved or retrieved for required actions.
    ●  The design has the wire feeder pipe to go forward again only then goes feed wire the function, the going feed wire is stable.
  • Product Specifications
    Power supply AC 220 / 380V　50 / 60 HZ  3 Phase
    Wire size AWG# 14~22, 0.3~3mm² (PVC maximum OD4mm)
    Air pressure 0.5~0.6 Mpa
    Crimping force 2.5 Ton (Servo motor Terminal crimping machine)
    Speed 3000 pcs-hr (300 mm)
    Cut length of wire PVC length 50mm~5,000mm (Standard)
    Stripping length NO.1 Crimping side 0 mm~7 mm、NO.2 Crimping side 0 mm~15 mm
    Capacity Cutting wire, stripping on one end, stripping both ends, half-stripping on one end, half-stripping both ends, crimping on one end, crimping both ends
    Detectors equipped Wire overload, wire load, terminal overload, terminal load, crimp detection, air presser low, Wire joint
    Dimensions 1,100 L×1,100 W×1,900 H mm
    Weight Approx.450kgs
