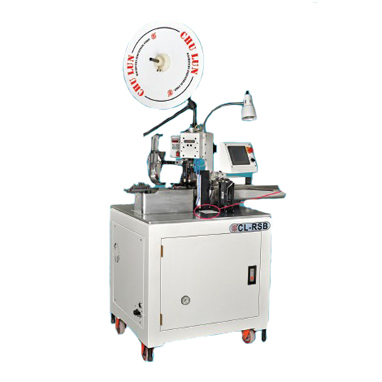

CL-RSB Full Automatic Terminal Crimping Machine(Single Heade Thick)

  • Product Name

    Fully Automatic Wire Twisting and Terminal Crimping Machine (one end)

  • Product Feature

    1. Use the touch screen monitor and the wire strip length can be adjusted on the main control panel. It is quick to change the setting and easy to operate.
    2. Use servo motor system, and the wire length quantity and numbers of lots can be set by the touch panel. EX: cut deep, feed terminal length, and twisting position.
    3. Automatically shutting down the machine during exceptional condition and displaying the inspected condition on the monitor for conveniently, rapidly eliminating the conditions and reducing shutting down time.
    4. The crimping seat can be adjusted on the touch screen.
    5. Fast manual tension adjustment with micro knob (in cells of 0.02mm) without any tool.
    6. The 100 sets of memory files can be saved or retrieved for required actions.

  • Product Specifications
    Capacity Cutting wire, stripping on one end, stripping both ends, half-stripping on one end, half-stripping both ends, twisting on one end, crimping on one end
    Power source AC 220V /380V 50 / 60 Hz  3 phases
    Operation method Manual, single cycle and Auto (Continuous)
    Capacity 4200 P/H(Under 300 mm)
    Cut length of wire PVC length 50 mm~ 5,000mm(Standard)
    Cutting accuracy Under 0.5mm
    Stripping length 0 mm~ 9 mm for front end, 0mm~14mm for back end
    Stripping depth 100 action 1 mm (1 action = 0.01 mm)
    Wire size AWG#14~AWG#18(Standard)
    Air pressure 5~6 kg
    Crimping force 2.5 Ton
    Detectors equipped Crimping Force Detector、terminal overload、terminal load and air presser low
    Dimensions 1050L*730W*1900H mm
    Weight Approx.300kg
