Force Sensor

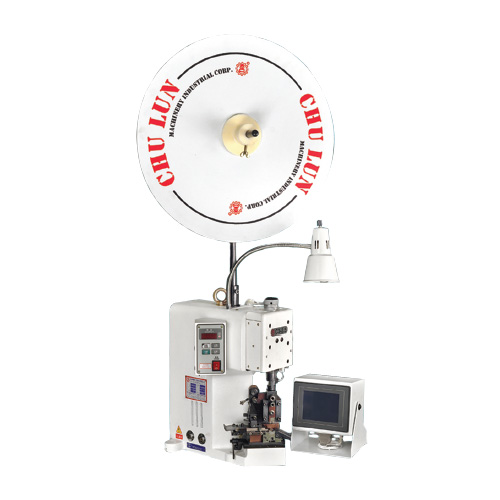

  • Crimp Force Monitor

  • Capacity Double channel crimp force monitor.
    Power source AC 110V /220V  50 / 60 Hz  1 phase
      Operation method External in semi automatic terminal crimping machine or
    full automatic terminal crimping machine, set the measure-
    ment data by HMI.
    Measurement method The crimp force measurement by force sensor and display to HMI.
    Force sensor (Wire size) 500 LbF (AWG#22~AWG#32)  The wire only provides a reference.
    Force sensor (Wire size) 1000 LbF (AWG#18~AWG#22) The wire only provides a reference.
    Force sensor (Wire size) 5000 LbF (AWG#14~AWG#18) The wire only provides a reference.
    Dimensions 247L*230W*97H mm
    Weight Approx. 4kgs

    * Our company reserves right of specification alteration or stop using. Specification
    in diagram as out of accordance with fact take solid Ben machine as standard.
