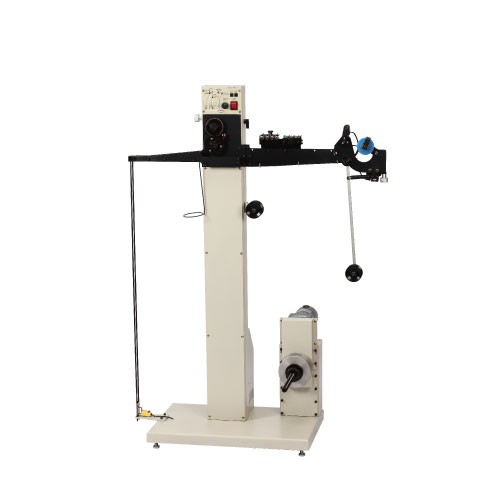

Multi-Function Feeder

  • Multi-Function Feeder

  • This feeder is provided with DC motor which renders stable delivery of wire to the cutter. This feeder is further outlined with sensor and warn devices. In case of short supply of wire, absence of terminal, over feed of wire, and feed speed out of control, it senses and transmits the signal to the wire cutting machine and crimping machine to stop their operation. It is suitable to load shaft would wire roll or ball reeled wire roll.

  • Model WRS-02 WRS-06
    Power Supply AC 110∕220V 50∕60 HZ AC 110∕220V 50∕60 HZ
    Wire Size AWG# 18~32 AWG# 18~34
    Motor Power DC 90W×2 DC 90W×2
    Dimensions 950 L×580 W×1320 H mm 950 L×580 W×1320 H mm
    Weight 58 Kgs 58 Kgs
