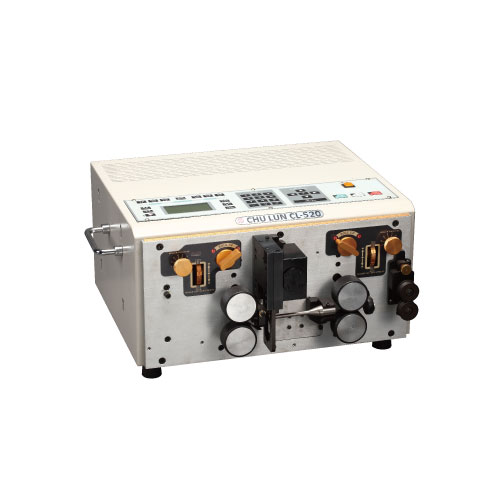

CL-520 Automatic Wire Cutting Stripping Machine

  • Automatic Wire Cutting Stripping Machine

  • This is a fully-automated machine that performs high-speed computerized wire cutting and stripping on both ends.

    • LCD display of full pictures, full screen operations display, clear and user friendly.
    • Providing broader range of design and production, applicable for wire material from AWG# 8~20.
    • Using Japanese 5-phase stepping motor for dimensional control to providing high productivity and precise dimensioning.
    • For changing wire material specification, only changing wire material specification for production.
    • Designed with memory function for faster and more convenient production configuration.
  • Power supply AC 110∕220V
    Wire size AWG# 8~20
    Cutting length 1~7,300 mm
    Stripping length 0.1~48 mm
    Wire feed speed Variable
    Dimensions 458 L×454 W×255 H mm
    Weight

    33 Kgs

    Capacity

    Wire Length 10 mm 60 mm 100 mm 500 mm 1000 mm 5000 mm
    A.Pcs-Hr --- 3000 2880 2160 1680 600
    B.Pcs-Hr --- --- 2820 2100 1620 600
    C.Pcs-Hr --- --- 2460 1920 1500 600
    D.Pcs-Hr --- --- --- 1320 1080 480
