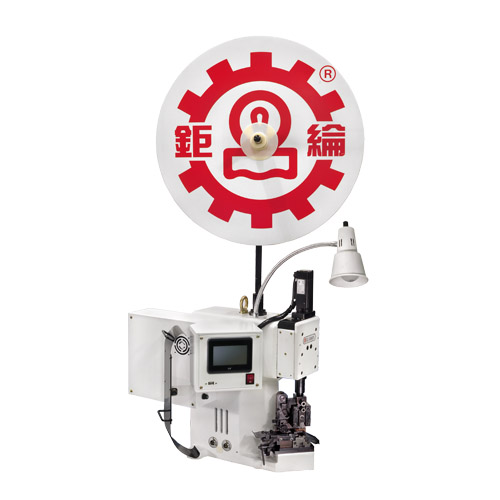

CL-SM01 Smart Semi-Automatic Terminal Crimping Machine

  • Product Features
    • This machine is driven by a server motor of construction and offers maximum precision and free of delays and troubles in mechanical movements in conventional clutches, this machine comes with minimum number of movement parts avoid wear and replacements, maximum torque, minimum vibration, high stability assuring noise-free working environment.
    • It comprises wide applications capable to fit vertical and horizontal molds many brands.
    • Crimping adjust the position using the touch panel crimping position .It has an accuracy range within 0.01mm.
    • The 200 sets of memory files can be saved or retrieved for required actions.
  • Product Specification
    Model CL-SM01
    Power Supply AC 220V  50/60 Hz  1 phase
    Capacity 2.5 Ton
    Motor Power 750W
    Stroke Length 30 mm
    Operation Single foot pedal switch、Human-machine interface operation
    Dimensions 450 L×570 W×550 H mm
    Weight 78 Kgs
