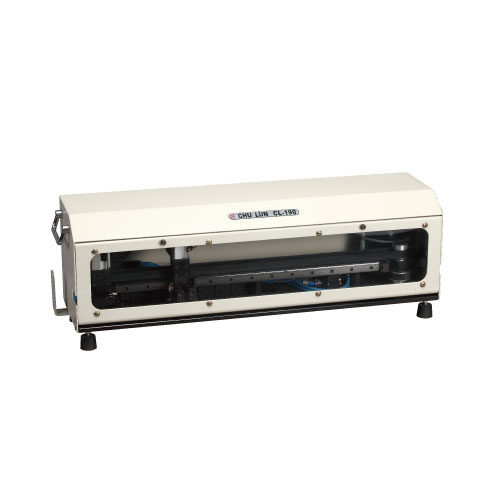

CL-190 Wire Division

  • Product Name

    Wire Division

  • Product Features
    • The type associated with CL-560 automatic wire cutting stripping machine for production of wire rows, such that the wire splitting and wire cutting can be done at one time, and no need for adjusting the position of wire splitter when changing the length of wire material; the host computer will automatically determine the positions for wire splitting, cutting and stripping to cut the standard wires for time-saving, labor-saving and precision.
    • Wire splitting function width to 14 mm, cutting length to 480 mm.
    • Wire splitting power using stepping motor, the wire properly and helps the accurate.
    • For changing wire material specification, only changing wire material specification for production.
  • Product Specification
    Power supply AC 110∕220V
    Cutting length 1~480 mm
    Wire width 1~14 mm
    Splitting speed Variable
    Dimensions 920 L×200 W×220 H mm
    Weight 27 Kgs
